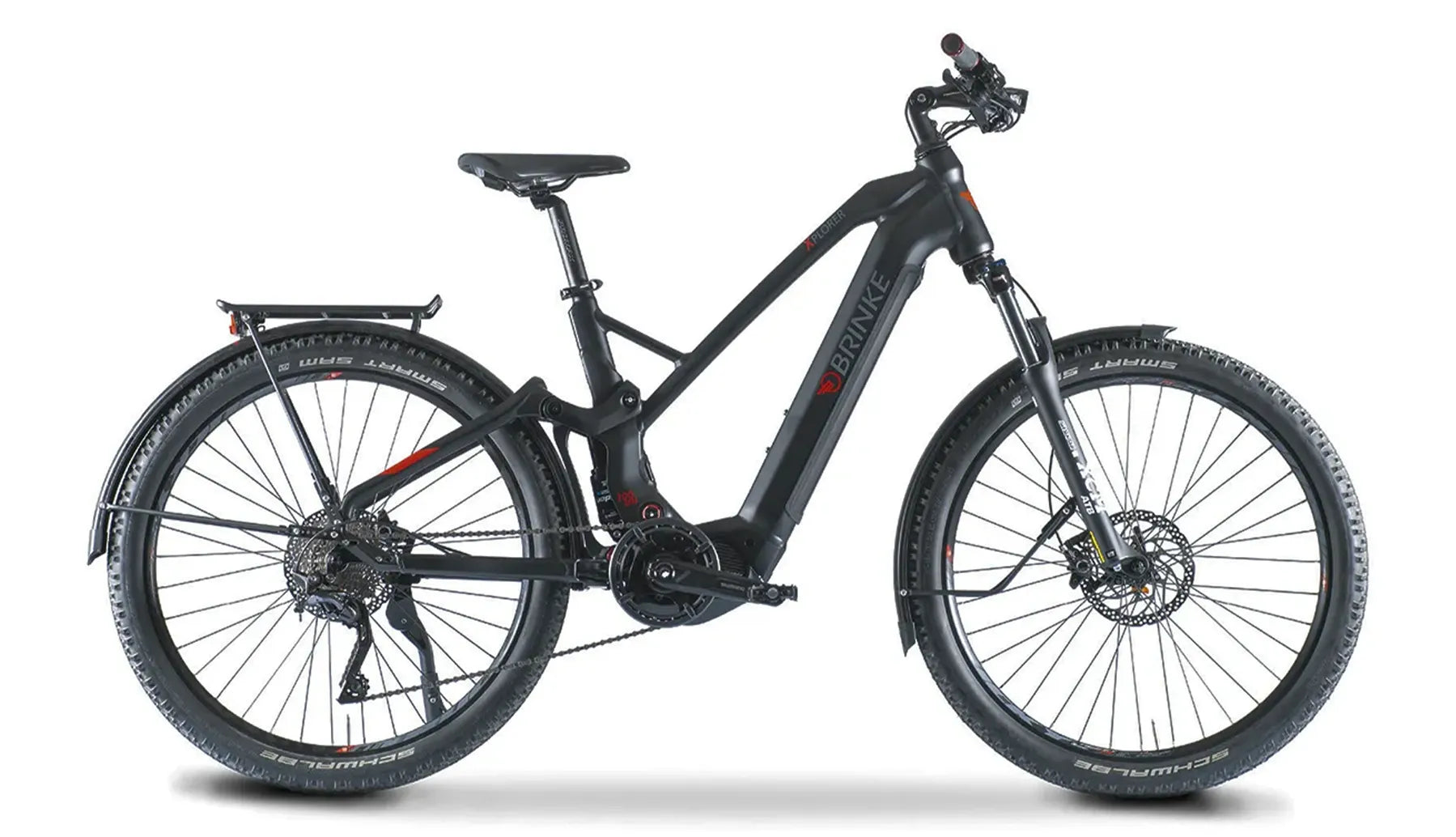

Vista di lato di una bicicletta elettrica e trekking modello Xplorer di colore nero

Xplorer (E7000)

Name: Xplorer (E7000)
Brand: Brinke Bike
Price: 3528.0 EUR
Availability: InStock

€3.528,00

€4.150,00

Save €622,00

Size:

L

Variant

Quantity:

Xplorer (E7000)

€3.528,00

€4.150,00

Uomo con bici elettrica trekking Brinke in ambiente montano, perfetta per escursioni in bicicletta

Characteristics:

XPLORER it's a Trekking ebike Full Suspended with 100mm front and rear travel, which guarantees agility and performance comparable to a dual-suspension cross country bike.
Equipped with Shimano BT-EN806 630Wh battery integrated the Trekking ebike It boasts a minimal and distinctive design.

Terms of Use 2

Technical specifications

Frame

ALUMINUM FRAME - Rear Suspension Travel 100mm - Motor Mount for Shimano EP7000 - 27.5'' Wheels Internal Cable Routing

System

Motor

Shimano E7000- 250Watt

Battery

Shimano BT-E8036 630Wh

Display

Shimano SC-E5000

Suspensions

Rear Shock

Suntour RAIDON R 170x35mm

Fork

Suntour XCM30 NLO 100mm

Cockpit

Handlebar Stem

Adjustable, Barbore 31.8mm, Extension 85mm

Handlebar

Diameter 31.8mm, Width 680mm, Rise 18mm

Seatpost

Seatpost 31.6mm-300mm

Saddle

Selle Italia ST3 SF FEC

Brakes

Front Brake

Shimano BR-MT200 2 Pistons

Rear Brake

Shimano BR-MT200 2 Pistons

Rotors

180mm Front and Rear

Transmission

Rear Derailleur

Shimano RD-M5120 SGS 10 Speed

Shifter

Shimano SL-M4100-R 10 Speed

Cassette

Shimano CS-HG50-10 Speed 11-36T

Chain

Shimano CN-E6090-10 Speed

Crankset

Shimano FC-E6100 170MM

Crank Arms

Shimano SM-CRE61 38T

Wheels

Front Hub

Shimano HB-M3050 - Center Lock

Rear Hub

Shimano FH-M3050 8-11 Speed- Center Lock

Front Rim

Mach1 Trucky 27.5'' - Internal Width 30mm

Rear Rim

Mach1 Trucky 27.5'' - Internal Width 30mm

Front Tire

Schwalbe Rapid Rob 27.5x2.25

Rear Tire

Schwalbe Rapid Rob 27.5x2.25

Accessories

Rear Rack

Pletscher Wersa

Mudguards

Pletscher R60 Alu

Kickstand

Adjustable Rear

Measurements

Size	S	M	L
a - FRAME HEIGHT (mm)	420	460	520
b - TOP-TUBE HORIZONTAL (mm)	595	605	615
c - HEAD-TUBE LENGTH (mm)	155	155	155
d - HEAD-TUBE ANGLE (°)	69	69	69
e - SEAT-TUBE ANGLE (°)	74	74	74
REACH (mm)	-	-	-
STACK (mm)	-	-	-
f - REAR END LENGTH (mm)	485	485	485
WHEEL SIZE (mm)	27,5"	27,5"	27,5"

As standard

Full suspended, 100mm front and rear travel, for maximum comfort and performance
Silent and high-performance Shimano E7000 motor
Shimano E8036 630Wh battery, for greater autonomy
Distinctive and minimal design

Download

Manuale d’uso e manutenzione Xplorer

Brinke Bike video 3d bicicletta elettrica da trekking modello xplorer

Unboxing

The ebike is delivered to your home in a medium-sized box. All you need is 6 simple steps to get on your new Brinke electric bicycle. To find out all the details click on FIND OUT MORE.

FIND OUT MORE

Prodotti correlati

Xplorer (EP801)

€4.590,00

Xplorer (EP6)

€4.350,00

(*) Brinke reserves the right to modify the set-ups of one or more e-bikes in the collection, with components and / or software of equal value, in the event of a need for supplies and / or new business decisions
