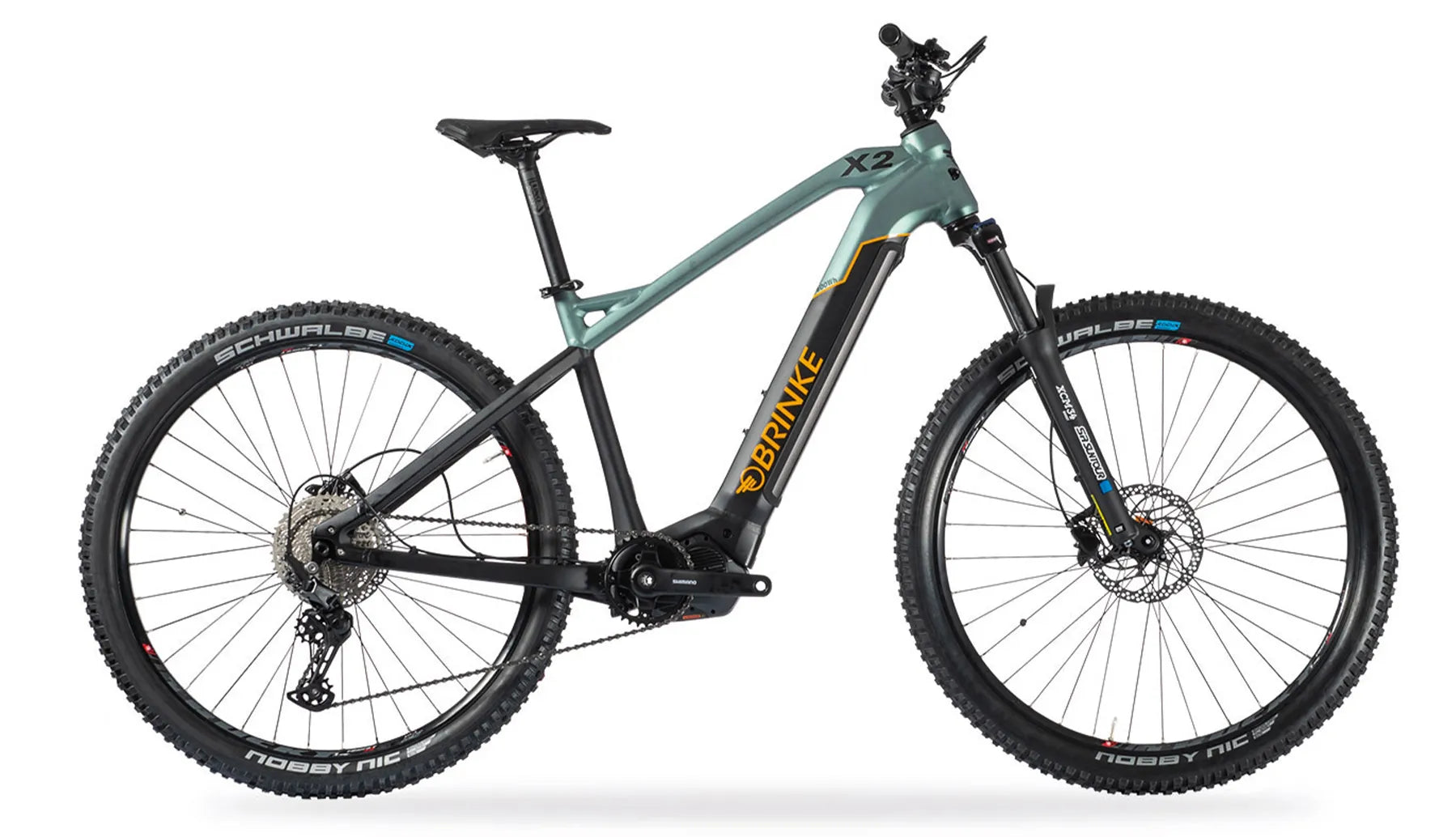

Vista di lato di una bicicletta elettrica da mountain bike modello X2r Hardtrail di colore nero, azzurro e giallo

X2S (E7000)

Name: X2S (E7000)
Brand: Brinke Bike
Price: 2872.0 EUR
Availability: InStock

€2.872,00

€3.590,00

Save €718,00

Size:

L

Variant

Quantity:

X2S (E7000)

€2.872,00

€3.590,00

Uomo con bici elettrica mtb Brinke in ambiente montano, perfetta per escursioni in bicicletta

Specifications

The down tube is of X2 both of X1S is designed around the drums integrated, to guarantee an attractive and minimal aesthetic. In the range it is possible to choose between 3 different types of setups which include: the innovative EP801 or Shimano EP6 motor or even the most economical solution with the OLI SPORT MID DRIVE SYSTEM 36V motor.
The frame X2 accommodates 29"X2.60" tires, both capable of guaranteeing maximum grip.

Terms of Use

Technical specifications

Frame

ALUMINUM FRAME - Motor Mount for Shimano EP8 - Rear Wheel 29'', Front Wheel 29'' - Internal Cable Routing - Boost 148mm Rear Axle

System

Motor

Shimano E7000- 250Watt

Battery

Shimano BT-E8036 630Wh

Display

Shimano SC-E5003

Suspensions

Fork

Suntour XCM34-Boost NLO DS 15AH2-110 29'',120mm 15X110 Tapered Head tube

Cockpit

Handlebar Stem

3D Forged AL6061 with CNC machining-Barbore 35mm, extension 45mm

Handlebar

Diameter 34.9- width 780mm width - 28mm rise

Seatpost

Seatpost 31.6mm-400mm

Saddle

Selle Italia X-LR Air-Cross Light SF

Brakes

Front Brake

Shimano BR-MT200 2 Pistons

Rear Brake

Shimano BR-MT200 2 Pistons

Rotors

180mm Front and Rear

Transmission

Shimano RD-M5100 SGS 11 speed

Shifter

Shimano SL-M5100-R 11 speed

Cassette

Shimano CS-M5100-11 speed 11-42D

Chain

Shimano CN-HG601-11 speed W/quicklink

Crankset

Shimano FC-E6100 170MM

Chainring

Shimano SM-CRE70-B 34T

Wheels

Front Hub

Shimano HB-MT400-B - 15X110 - Center lock

Rear Hub

Shimano FH-MT400-B - 12X148 - 8-11 speed - Center lock

Front Rim

Mach1 Trucky 29'' - internal channel 30mm

Rear Rim

Mach1 Trucky 29'' - internal channel 30mm

Front Tire

Schwalbe Nobby Nic 29x2.6

Rear Tire

Schwalbe Nobby Nic 29x2.6

Measurements

Size	S	M	L
a - FRAME HEIGHT (mm)	430	460	500
b - TOP-TUBE HORIZONTAL (mm)	605	610	620
c - HEAD-TUBE LENGTH (mm)	140	140	140
d - HEAD-TUBE ANGLE (°)	67	67	67
e - SEAT-TUBE ANGLE (°)	74	74	74
REACH (mm)	410	414	422
STACK (mm)	650	665	620
f - CHAINSTAY LENGHT (mm)	475	475	475
WHEEL SIZE (mm)	29''	29''	29''

As standard

Hardtrail MTB with 120mm front travel
Shimano E7000 motor silent and performance
Shimano E8036 630Wh battery, for greater autonomy
Minimal and distinctive design in the new dark gray and light blue graphics

Download

Manuale d’uso e manutenzione X2

Brinke Bike video 3d bicicletta elettrica da mtb modello x2

Unboxing

The ebike is delivered to your home in a medium-sized box. All you need is 6 simple steps to get on your new Brinke electric bicycle. To find out all the details click on FIND OUT MORE.

FIND OUT MORE
